Armatherm™ FRR

Armatherm™ FRR Structural Thermal Break Material

(Thermal Insulation Material – TIM)

Armatherm™ FRR structural thermal break material provides a combination of low thermal conductivity and high compressive strength and has been used in hundreds of structural steel framing connections transferring load in moment and shear conditions.

Armatherm™ FRR thermal break material can support high loads and has great mechanical properties. The material is made of a reinforced, thermoset resin which is ﬁre resistant making it the ideal material for use in structural steel and façade thermal break connections.

DOWNLOAD BBA CERTIFICATE

DOWNLOAD DATASHEET

Applications using Armatherm™ FRR to reduce heat ﬂow include:

Armatherm™ Thermal Washer and Bushing

With a bolt through insulation pad there is a slight thermal transfer along the connecting bolt.

To further reduce heat loss, Armatherm™ bushings and washers can be used on the warm face of the structure. A thermal break at the bolt connection will reduce heat loss an additional 4% per bolt depending on the wall assembly construction.

In extreme applications (e.g. Indoor Swimming Pools), to prevent condensation on the bolt head, a polyurethane nut cap can be supplied to effectively screen this cold surface from the internal environment.

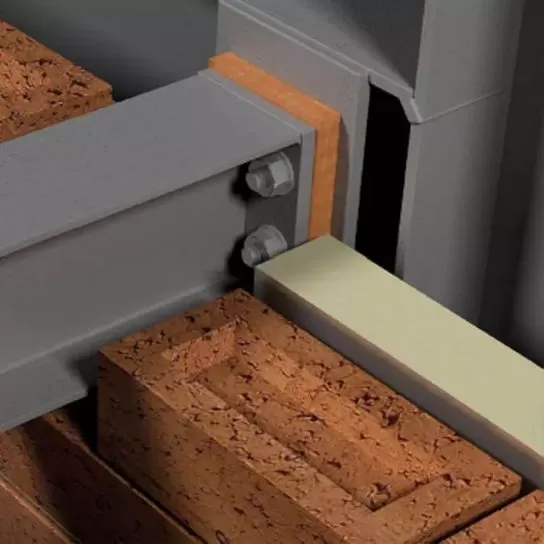

Structural Steel Thermal Break Connection

Armatherm™ Thermal Break Pads are often called Thermal Bridges, balcony isolators, structural thermal breaks, cantilever steelwork thermal bridging, cold bridge isolation, thermal partitions, steelwork thermal break, thermal bridging, cold bridging pads, cold bridging solutions. All of these solutions use Thermal Insulation Material TIM to prevent thermal bridging.

Structural thermal break with thermal bushing and washer

Steel bolt connection thermal break

Armatherm™ FRR thermal break material

Armatherm™ bushings and washers

"The team is always very helpful and persistent in delivering the best service possible for the customer and the project. At one point went to the extent of renting a U-Haul to get the product down to Raleigh when the carrier dropped the ball half way down from Mass. Excited for more opportunities ahead!"

James Clark, White Cap

"I can always trust that ARMATHERM will deliver a reliable product on time. Their deep knowledge of the industry allows them to aid in project planning and design. ARMATHERM goes out of their way to help their customers get the service they need."

Andrew Sarlo, Cives Steel Co.

"Dirigo Drywall can count on Armatherm to deliver quality thermal break products for our building projects that increase the building’s energy efficiency and help us meet energy compliance goals."

Nathan P. Croteau, LEED-AP

“Armatherm was very accommodating with their customer service team in the release and delivery of materials to meet the schedule of the project. They also provided the necessary engineering information for us to ensure the product performed as required. Overall it was a smooth experience from Design to P.O. to Installation.”

Andrew Boesch, Eastern Exterior Wall Systems

"ARMATHERM has a commitment to producing quality products and excellent customer service that is second to none in their industry. They are extremely easy to work with and hold true to their quoted lead times. The Steel Supply Company can count on ARMATHERM to deliver quality thermal break products for our building projects that increase the building's energy efficiency and help us meet energy compliance goals."

Frankie, The Steel Supply Company

"The quote came quick, short lead time/fast delivery, no troubles with installation, great technical support & most important – competitive pricing! We are also happy to support a local Massachusetts business!"

Pierre Gagnon, New England Finish Systems

"Armatherm products have been useful in addressing thermal bridging challenges in our projects. Armatherm products insulate many of the difficult structural thermal bridging details GPC Green Builders often encounter. The quoting is quick, the products are shipped on time, and the customer service is great."

Ben Bogie, BPC Green Builders

More about Armatherm™'s FRR Thermal Break

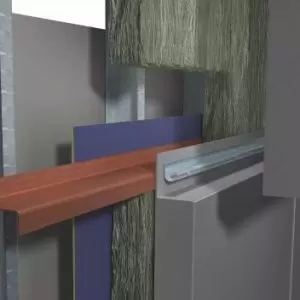

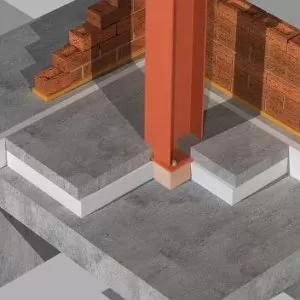

As used within a number of prestigious, high-profile projects across the world, the Armatherm™ product range includes the innovative FRR material which harbors inert and water resistant qualities. This makes it ideal for a number of applications and locations, including cladding fixings, foundation to wall transitions, column base and roof penetrations.

The Armatherm™ product range boasts usage by multiple prestigious, high-profile projects worldwide. The ground-breaking FRR material utilised within the product harbors non reactive and water resistant capabilities.

The UK is facing increasing legislation, impacting the future of the construction industry. Armatherm™ gives you the opportunity to stay ahead of these changes, with products which aid poorly isolated connections within existing buildings and products for structures currently undergoing construction, to make both as efficient as possible. These solutions need to be implemented soon, within the earliest stages of a construction project, in order to conform with upcoming legislation. Because of this, it is important for architects and developers to realise the importance of products which aid in efficiency processes.

Armatherm™’s FRR product is a specific example of a structurally sound high performing thermal break material. It delivers thermal insulation between interior and exterior steelwork, or concrete, which directly prevents cold bridges occurring. Furthermore, this product benefits building envelope performance by significantly reducing heat loss and preventing surface condensation, caused when the cold transfer meets warm air, from forming inside the building. Causing a high risk of making buildings unsustainable and inefficient, structural thermal break concrete connections are in desperate need of these solutions.

Concrete is used frequently within the building industry, due to its durable, long-lasting and cost-effective properties. It also naturally gives a high level of thermal mass, enabling it to absorb, store and release heat to regulate the temperature of buildings. However, a slight penetration through the material can cause a thermal bridge. If this does occur, the energy efficiency of a building will be hugely impacted, as well as its running costs which will lead to an inefficient and uneconomical structure. Structural steel thermal breaks must remain at the forefront of all plans when working with such materials to ensure all the framework, foundations and building envelope faces no detrimental consequences.

The U value of the roof assembly will be greatly improved with the introduction of structural thermal break pads in a parapet roof location. Also, the potential chances of condensation issues occurring will be prevented at the structural connection. With the FRR and 500 series thermal break materials, continuous insulation will be created, as heat flow will be reduced significantly whilst transferring loading conditions. Locational efficiency can be improved by as much as 80%, invaluable in the light of the UKs legislation policies.

The Armatherm™ team has more than 40 years’ experience in the field and can advise you on which structural thermal break products will be most beneficial for your building needs, and we are also able to answer any queries you may have. Our thermal breaks in structural steel solutions are classified as some of the best in the industry today.

Contact our expert structural thermal break team in the UK today to find out how we can help and provide efficient solutions for your building.
