Armatherm™ 500 Structural Thermal Break Material
(Thermal Insulation Material – TIM)
Reducing heat flow within a building’s thermal envelope reduces energy consumption as well as potential condensation issues. Armatherm™ 500 thermal break material (TIM) significantly reduces energy lost from thermal bridging in building envelope connections.
Armatherm™ 500 structural thermal break material is a high strength, thermoset polyurethane manufactured in several densities.
Armatherm™ 500 thermal break material can support high loads and has a selection of four grades of material with different compressive strength capabilities.
The Armatherm™ 500 thermal insulation blocks have very limited creep under load, plus they do not absorb water because of their closed cell structure. Therefore, energy lost via thermal bridging is reduced within building envelope connections. Heat flow, energy consumption and potentially dangerous condensation issues are all minimised as a result.
The standard thicknesses Armatherm™ 500 is available in are 5mm, 10mm, 12mm, 15mm, 20mm, 25mm, 50mm. Furthermore, the high strength, polyurethane material sheets can be layered with ease to achieve the desired U value and thickness specifications. It is extremely dynamic and can be used across the building, wherever features a penetration or transition exit through a building envelope. It can be cut and drilled on site easily, where a thermal bridge occurs, if necessary. Armatherm™500-320 and Armatherm ™500-490 are the most common specifications.

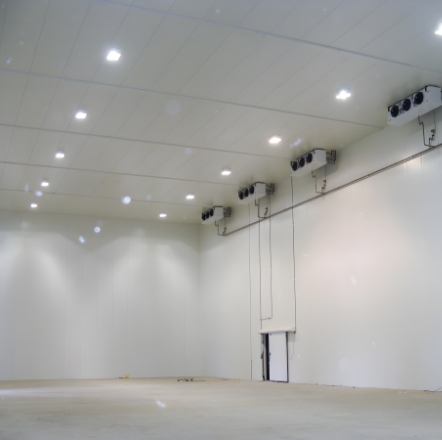

Not only is Armatherm™500 the ideal solution to prevent thermal bridging in buildings to reduce heat loss, it is also suitable for cold storage facilities to prevent the subgrade from freezing. This is necessary for frozen food storage, Armatherm™500 sits directly under the column base to prevent the transfer of cold temperatures into the ground.
Applications using Armatherm™ 500 to reduce heat flow include:
Armatherm™ 500 Thermal Break
Armatherm™ 500 Thermal Break
Armatherm™ 500 – Parapet Roof Penetration Thermal Bridging Solution
Thermal bridging is necessary in locations such as roof to wall and parapets as they require structural framing for support. By including thermal break materials under the parapet connecting the facade and roof insulation, the R value can be improved by as much as 30%. Within the building envelope, a thermal break can also be installed at roof penetration points where structural elements are supported.

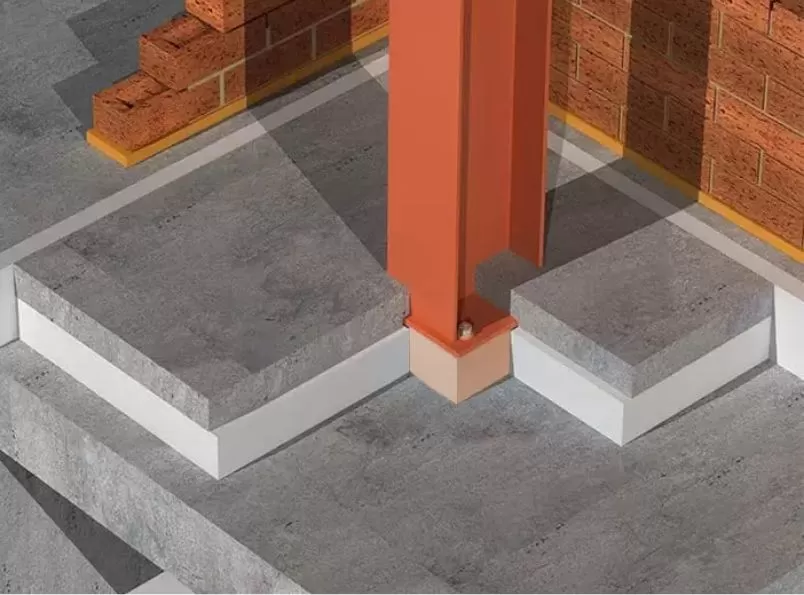

Armatherm™ 500 – Column Base Thermal Bridging Solution (load dependent)
In a traditional structure, columns extend throughout the building envelope and slab insulation are positioned at their base. Cold bridges can be prevented with the use of a thermal break. Armatherm™ 500 has a limited creep under load as well as high strength, making it the best solution for load supporting thermal break requirements.

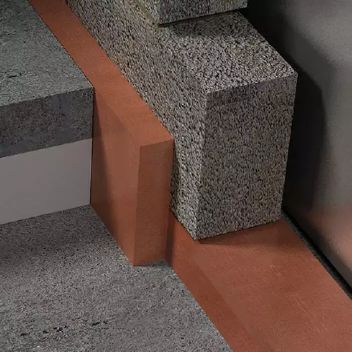

Armatherm™ 500 – Foundation Wall Thermal Bridging Solution (load dependent)
Further areas with the potential to feature thermal bridges are the foundations of a building and the connection from slab on grade to a foundation wall. Energy loss can be reduced dramatically with the addition of an Armatherm™ 500 series thermal insulation block which support exceptionally high loads of up to 300N/mm2.
